Heavy Duty Heat Shrink Kits (3-wire)

Help! The Cable’s Cut!

Electrical cables are often accidentally cut by landscapers, contractors and home-owners working around the pond. They can also be damaged by chewing pets.

HSC-4 Heat Shrink Kit (4-wire)

The HSC-4 heat shrink kit (4-WIRE 14-10 GAUGE CLEAR SPLICE KIT) is made of flexible cross-linked polyolefin heat shrinkable tubing. This tubing is suitable for applications up to 600 volts providing excellent waterproof insulating and environmental sealing protection for splices, connections and jacket repairs. The high impact and abrasion resistance of this heavy wall tubing provides the highest level of mechanical durability.

Features

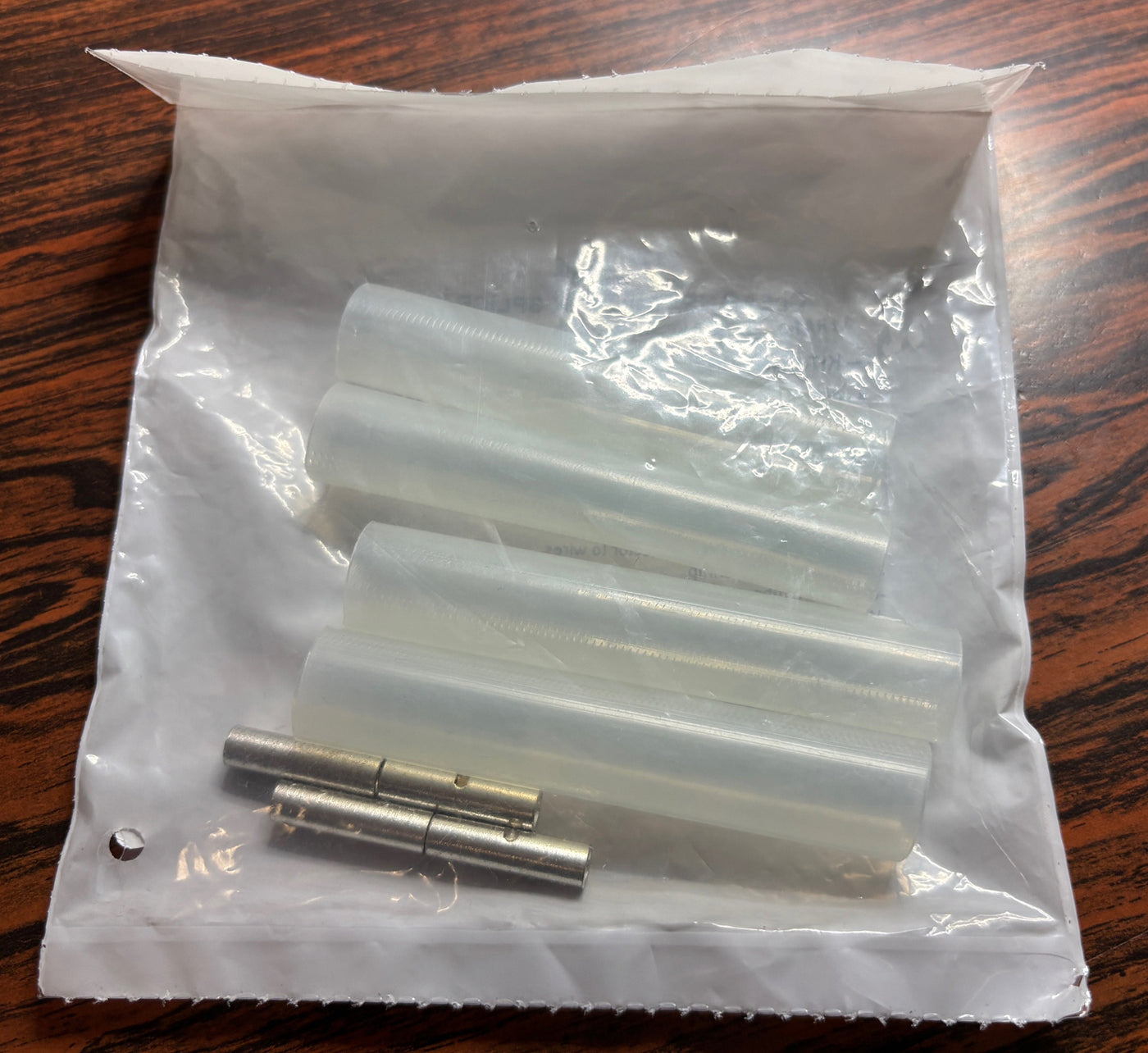

• Kit includes 4 metal crimp style stakon connectors and 4 clear water-tight heat shrink tubes
• Fits 14, 12, and 10 gauge submersible wire sizes
• Water-proof electrical connection
• Metal stakon connectors are used to join wires together
• When heated above 120°C (250°F) there is a 3:1 shrink ratio
• For added protection and water-proofing, use the Pre-Cut Heat Shrink Tubing in combination with the kit.
• MADE IN CANADA

How to Use

• Strip 1/4" insulation from wires and cables
• Remove any grease from the wires for 2in-3in
• Slide the heat shrink tube over one end
• Insert wires into stakon connectors
• Crimp to attach connectors to the wires
• Pull lightly to test the crimp
• Center the tube over the stakon connector
• With low heat, shrink the tube from the center outwards
• When completely sealed, a slight "glue amount" should be visible
